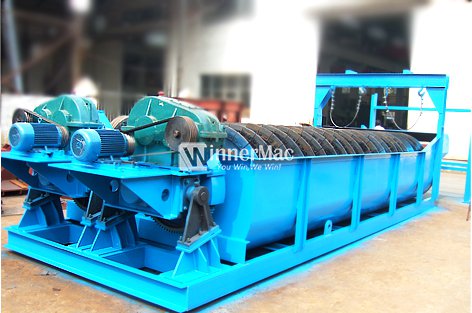

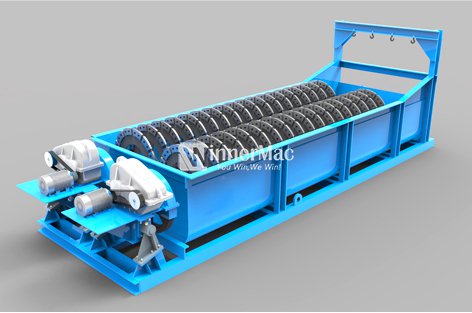

Spiral Classifier

High weir spiral classifier as the ancillary equipment of grinding to pre-classifying and check classifying is also applied in de-mudding and dewatering. Our spiral classifiers are widely used in the distribution of ore in closed circuits with ball mills, grading ore and fine slit in gravity mills, grading granularity and flow of metal ore- dressing, and de-sliming and dehydrating in washing.

We're here to help:

Easy ways to get the answers you need.

0086 18637192252
0086 18637192252
  • Spiral Classifier,Spiral Washer,Screw Classifier,grading clas
  • Spiral Classifier,Spiral Washer,Screw Classifier,grading clas
  • Spiral Classifier,Spiral Washer,Screw Classifier,grading clas
  • Spiral Classifier,Spiral Washer,Screw Classifier,grading clas
Brief introduction for spiral classifier
According to the principle that different grains are with different specific gravity and sedimentation rate in the liquid, the fine ore flows in the water and the coarse ore sinks in the bottom. The classifier that has machine grading by discharging from the top can filtrate the materials and send coarse materials to the feeding mouth and discharge the fine material from the pipe. The  ball mill seat of the machine adopts channel steel and body adopts armor plate and the spiral axle adopts cast iron, so it's durable. The lifting equipments have two types, by electricity and hand. There are four types of classifiers, high weir type single and double spiral classifier, immersed single and double spiral classifier.
Model     Output Motor power
Spiral dia(mm) Spiral speed(r/min)       Drive(kw)
    Circulating load(t/24h) Overflow quantity(t/24h) Lift/lower(kw)
High-wear single spiral classifier
FG-5 φ500 8.5-15.5 143-261 32   1.1
FG-7 φ750 4.5-9.9 256-564 65   3
FG-10 φ1000 3.5-7.6 473-1026 85   5.5
FG-12 φ1200 5 \ 6 \ 7 1170-1600 155 2.2 5.5
FG-15 φ1500 2.5 \ 4 \ 6 1140-2740 235 2.2 7.5
FG-20 φ200 3.6 \ 5.5 3890-5940 400 3 11 \ 15
FG-24 φ2400 3.64 6800 580 3 15
FG-30 φ3000 3.2 11650 893 4 22
High-wear double spiral classifier
2FG-12 φ1200 5 \ 6 \ 7 2340-3200 310 2.2x2 5.5x2
2FG-15 φ1500 2.5 \ 4 \ 6 2280-5480 470 2.2x2 7.5x2
2FG-20 φ2000 3.6 \ 5.45 7780-11880 800 3x2 22 \ 30
2FG-24 φ2400 3.67 13600 1160 3x2 30
2FG-30 φ3000 3.2 23300 1785 4x2 40
submerged single spiral classifier
C-12 φ1200 2.5 \ 4 \ 6 1170-1630 120 2.2 7.5
FC-15 φ1500 2.5 \ 4 \ 6 1140-2740 185 2.2 7.5
FC-20 φ2000 3.6 \ 5.5 3890-5940 320 3 11 \ 15
FC-24 φ2400 3.64 6800 455 4 18.5
FC-30 φ3000 3.2 11650 705 4 22
submerged double spiral classifier
2FC-12 φ1200 3.8 \ 6 1770-2800 240 2.2x2 7.5x2
2FC-15 φ1500 2.5 \ 4 \ 6 2280-5480 370 2.2x2 7.5x2
2FC-20 φ2000 3.6 \ 5.5 7780-11880 640 3x2 22 \ 30
2FC-24 φ2400 3.67 13700 910 3x2 30
2FC-24 φ2400 3.67 13700 910 4x2 37
2FC-30 φ3000 3.2 23300 1410 4x2 45

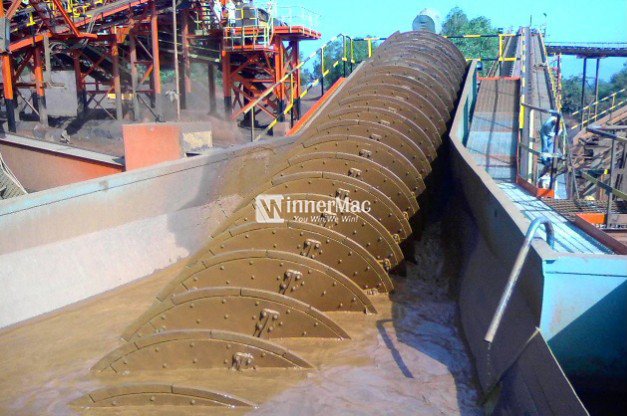

Spiral Classifier widely used in mineral processing plant to match with the  ball mill and form a closed-circuit circulation to process mining sand. Or used in gravity mine-selection plant for classifying sand and mine mud, and grading sand according to the particle size, disliming, dewatering in the mine washing process. This machine has simple structure, reliable operation, convenient operation, etc. The classifier is a kind of classifying machine that adopt the principle of settling speed difference according to different material sizes and specific gravity. Fine particles floating in the water overflow out; The coarse ore grain sinks to the bottom of the chase which will be pulled to the upper by the spiral and discharging out.
Supply the most current design and technical expertise;Supply parts sales and training service far beyond the initial sale;Your profits with quality parts and expert service.
