Alfalfa Feed Pellet Machine,feed mill, animal feed mill

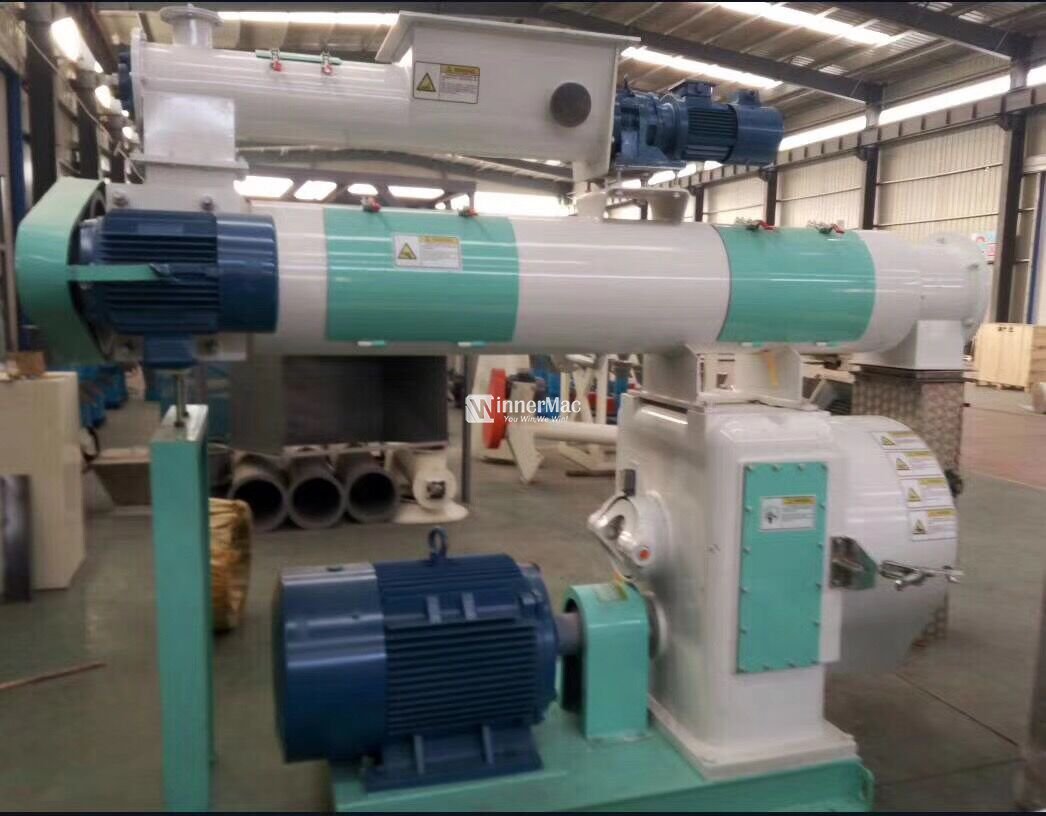

Alfalfa Feed Pellet Machine

Alfalfa Feed Pellet Machine,feed mill, animal feed mill Pellet Millis can be used to make various roughage and refined fodder in livestock farm and feed mill, also used for chemical industry, fertilizer industry and sugar industry.

We're here to help:

Easy ways to get the answers you need.

0086 18637192252
0086 18637192252
  • Alfalfa Feed Pellet Machine,feed mill, animal feed mill
  • Alfalfa Feed Pellet Machine,feed mill, animal feed mill
  • Alfalfa Feed Pellet Machine,feed mill, animal feed mill
  • Alfalfa Feed Pellet Machine,feed mill, animal feed mill
Features Of Alfalfa Feed Pellet Mill,feed pellet mill
1.Adopt aerodynamic technology, reducing the temperature in pelletizing chamber to around 90°C, therefore the machine can work well continuously.
2.Using spheroidal graphite cast iron, the machine body is more durable.
3.Treated by hardness quenching and milling machine, the gears maintain high concentricity with the shaft, thus ensuring a good performance and large capacity than belt driven models.
4.With lubrication system, you can add grease to main shaft without having to turn off the machine.
5.The ring die is cast by heat processing technology, thus having a durable life and producing qualified pellets.
6.Equipped with an advanced compensation serpentine-spring coupling which connects the pelletizing chamber with the motor to increase safety and stability.
7.Permanent magnet device can remove impurities in the pelletizing process.
8.One layer stainless steel conditioner is used to improve quality of feed pellets.

Alfalfa feed pellet mill model

Motor power

(kw)

Capacity

(t/h)

Feeder power

(kw)

Conditioner

Power

Ring die Dia.

(mm)

Pellet size

(mm)

25

22

1-2

0.75

2.2

Dia.250

1.0-12

32

37

2-3

1.5

2.2

Dia.320

1.0-12

35

55

3-5

1.5

2.2

Dia.350

1.0-12

42

110

5-12

1.5

4

Dia.420

1.0-12

508

132/160

8-20

1.5

5.5

Dia.508

1.0-12


1. High efficiency Gear-driven transmission system and S Shape coupling make the efficiency be above 97%. Compared with belt-driven system, the output can increase 15-20%. 2. Long service time. Siemens motor, SKF/NSK bearing, Germany oil seal, etc these top quality parts make our machine has long service time. Also,gear-box body is made by HT250, which is highly abrasive. Many other manufacturers adopt HT180/HT200. 3. Easy operation and maintenance. Quickly assembled and disassembled ring die is easy to change. It only takes 0.5-1 hour for one worker to change ring die.Compared with vertical ring die machine in China, it saves much more time. Others About Pellet Making Process: Feed Grinder →Feed Mixer → Feed Pellet Mill → Counterflow Cooler → Feed Pellets Grading Sieve → Automatic Weighing and Packing Machine
Our service: 1. Reply your inquiry within 24 working hours. 2. Experienced staffs answer all your question in professional and fluent English. 3. Customized design is available. 4. Exclusive and unique solution can be provided to our customer by our well- trained and professional engineers.
