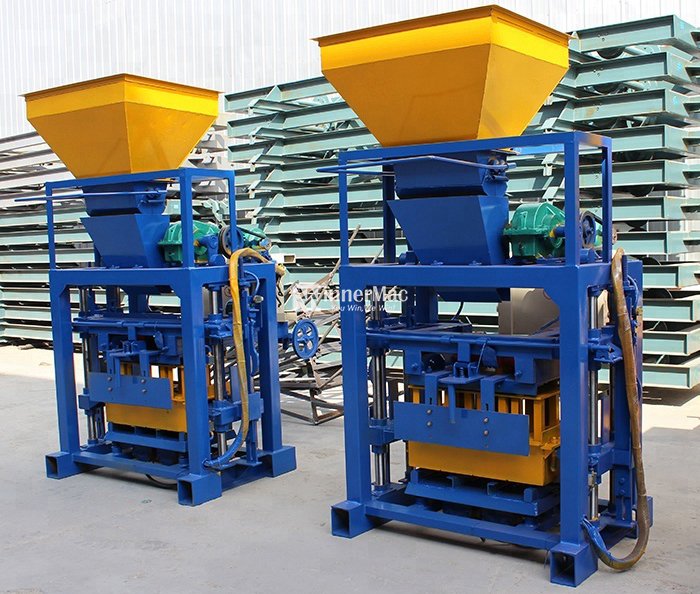

brick machine QT40-1

brick macine QT40-1

Superior vibratory effect: simultaneous vibration.the blocks produced are of good quality, large density and high strength;
Solid and Strong Machine Body: best steel Q235B,CO2 gas protective welde make the machine unable to break ;
High Quality Mould: All mould use heat treatment;
Low cost and user-friendly: So easy to operate,reducing labor force;
Durable and cost-effective: German brand Siemens motor, schneider brand switch, we can provide u with higher quality product with competitive price than others;

We're here to help:

Easy ways to get the answers you need.

0086 18637192252
0086 18637192252
  • brick machine QT40-1
  • brick machine QT40-1
  • brick machine QT40-1
  • brick machine QT40-1
1)QT40-1 block moulding machine Features
1. The QT40-1 block moulding machine operates through the combination of the bottom die vertical oriented vibration and upper die pressurized vibration.
2. Matched with the powerful vibration motor, block molding machine can highly efficiently produce blocks of high density and uniform strength.
3. Our block molding machine applies the mold which is pulled and pushed by power. But the material unloading is manually handled.
4. It is easy to operate and saves labor.
5. The block molding machine is capable of manufacturing multi-standard air bricks, perforated bricks, or solid bricks.


2) Characteristics of QT40-1 block moulding machine
1, Low cost: Low investment and high profit.
2, Muti function: It can make various hollow block solid brick by changing molds. The block shape and size can be made as per your requests
3, Easy operation: The machine does need installation, after connecting with power, you can use it directly.
4, Space saving: The whole line takes up 60m2 workshop only
5, Labor saving: The whole line takes up 5 person in total. 1 person feeding mateial. 1 person operate mixer, 1 person operate host machine, 2 person transport the blocks.

Mainframe Size

13500*1460*1800mm

Power

8.8KW

Voltage

380V/220V/415V

Exciting Force

33KN

Molding Cycle

30S

Blender Model

JQ350

Supporting Plate Size

850*450*30mm

Workshop Area

50m*m

Weight

2.5T








Theoretical production capacity of New technical concrete hollow brick block making machine QT40-1 for brick production machine

Size(LxWxh)

Pcs/Mould

Pcs/Hr

Pcs/8Hr

400mm*100mm*200mm

7

650

5200

400mm*150mm*200mm

5

460

3680

400mm*200mm*200mm

4

380

3040

400mm*250mm*200mm

3

280

2240

Our Brick machine can application to Materials such as sand, crushed stone, cement, dust and fly coal ash, cinder, gravel, perlite, wet ash in power plants, dry ash, hybrid ash, boiler slag, spontaneous combustion coal gangue, mountain flour, haydite, mine tailings, scoria, steel slag , carbide slag, water-granulated slag, wind-granulated slag, dry slag, smelting slag, sulfuric acid residue, phosphaed fertilizer slag, caustic sludge,laterite in aluminium manufacturers, electrolytic copper slag, stonework waste, potsherd, waste brick powder, construction waste, etc (among which one or two kinds are enough.

Brick Material Proporation of QT 40-1 semi automatic block/brick making machine line :
a. 8-10% cement, 30-40 % sand , 50-60% crushed stone.
b. 8-10% cement, 30% flyash, 60% sand or stone powder
Perfect after-sale service:Our machine is guaranteed for one year and our staff is available 24 hours a day,7 days a week. u can get pre-installation support, project report support.
