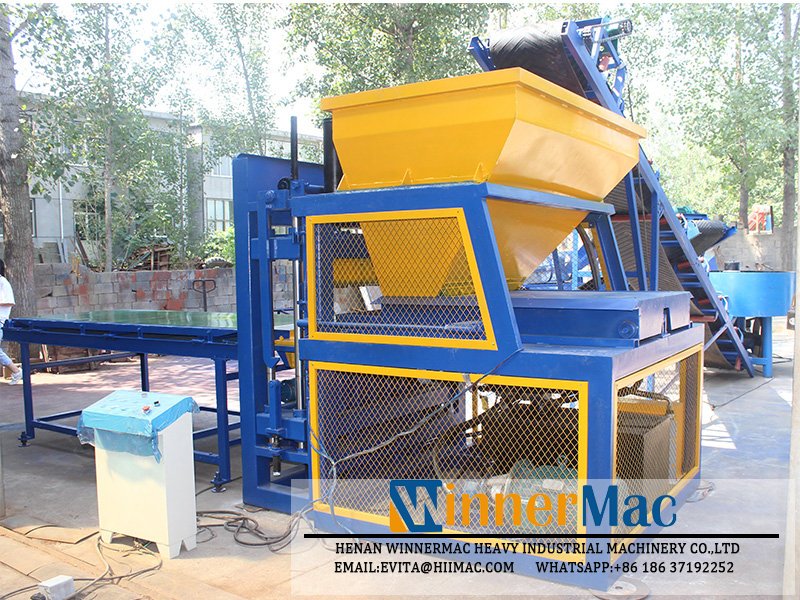

6-10 solid clay wall interlocking brick making machine is an upgraded versions of WT4-10 brick making machine. Production capacity and number of mould is double WT6-10 as this machine can put 6 pieces of moulds.

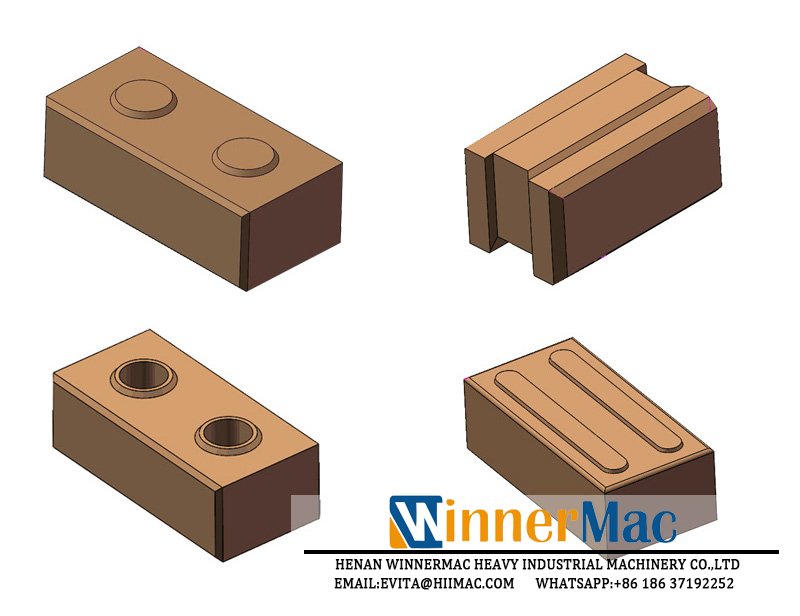

1.6-10 solid clay wall interlocking brick making machine can produce various interlocking blocksby changing the moulds
2. 6-10 solid clay wall interlocking brick making machine is full automatic. Its shaping cycle is as short as 10s, production capacity can reach 15000/8hours, so it's labor-saving and has high production efficiency,
3. Hydraulic pressure molding technology is adopted by this machine,so the brick machine has more stable and higher-efficiency working status and the bricks produced are of better quality, larger density and higher strength.
4. In the process of concrete block moulds production, precise line cutting and carburizing treatment technology are adopted to prolong its service life.

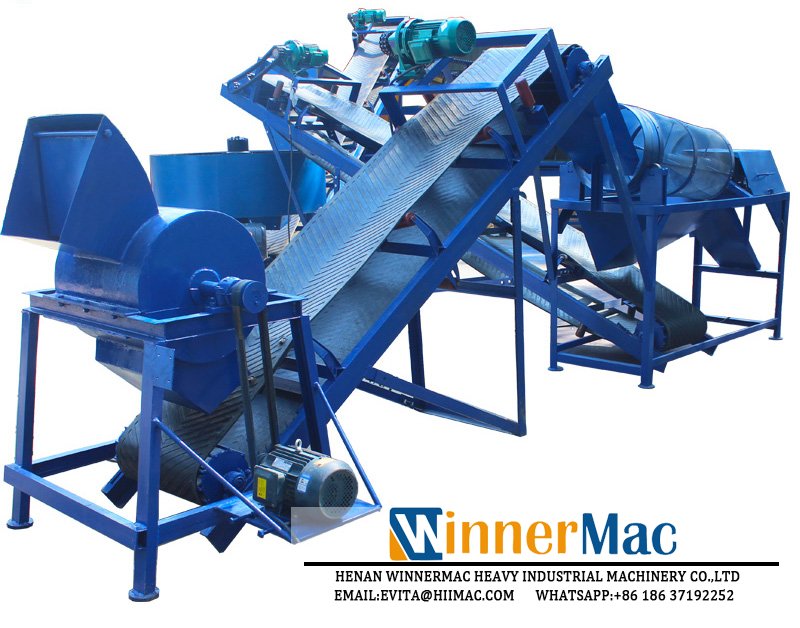

Soil crusher

Power

3KW

Oversize

940x850x1550mm

Capacity

480KGS/h

Voltage

380V or 220V

Size

Diameter:500mm

Total weight

300 KGS





Soil screen

Overall size

1900(L)x800(W)x1650(H)mm

Power

1.5kw

Capacity

480KGS/H

Voltage

380V/220V/ (adjustable)

Total weight

300 KGS





Block moulding machine

Overall size

2240(L)1800(W)2200(H)mm

Shaping cycle

10-12s

Power

11 KW

Pressure

30Mpa

Total weight

4000KGS





Block moulding machine

Overall size

2240(L)x1800(W)x2200(H)mm

Shaping cycle

10-12s

Power

11 KW

Pressure

30Mpa

Total weight

4000KGS



JD500 Mixer

Overall size

1500(L)x1500(W)x1300(H)mm

Shaping cycle

5 mins

Volume

500L

Weight

700KG

Electricity

380V/220V/ (adjustable)

Power

11kw



The Clay interlock brick machine uses a electric motor to drag the CBT-E316 gear pump, and thus produces the oil pressure is about 35Mpa to push the hydraulic oil cylinder doing to-and-fro motion The process of shaping and demoulding can be finished in 8 seconds.
Additional, the production of this machine is two times more than that of similar foreign manual models and the labor intensity is greatly decreased.
By adjusting the screws, the height of the brick can be changed. Uses PLC control system and Siemens Touch Screen.
Pre-sale
1. According to your needs, select right model for you.
2. According to your special requirements, design customized solution and manufacture customized products for you.
3. Welcome your visit.

Sale
1. Sign contract, pay deposit, we arrange production.
2. Product acceptance.
3. Help you formulate construction scheme.

After-sale
1. Assign engineer service for you on-site freely.
2. Install and adjust device, train how to operate.
3. After installation, leaving 1-2 technical staff to help you on-site production, until achieve customer satisfaction.
