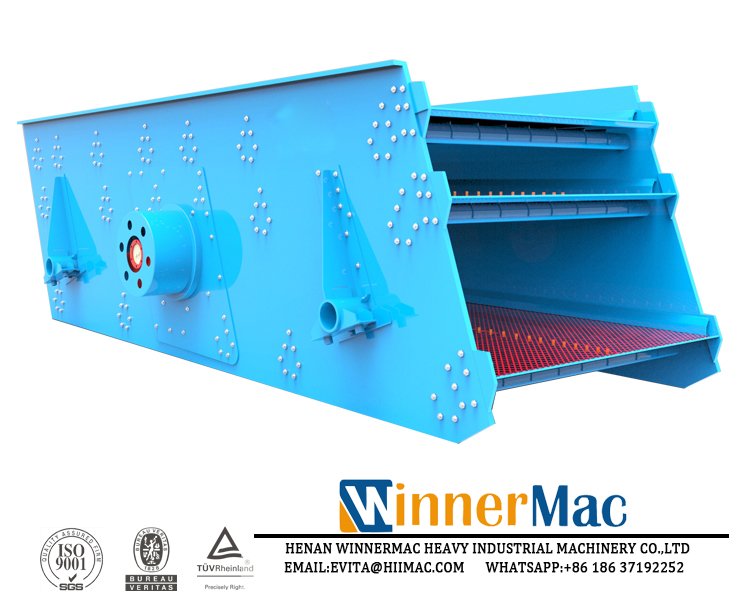

Vibrating Screen

The vibration screen trajectory movement of the circular elliptical. It is a multi-layer, high-efficiency new type vibrating screen designed specifically for quarry screening stones. Widely used in mining, coal, smelting, building materials, refractories, light industry, chemical and other industries of product classification.

We're here to help:

Easy ways to get the answers you need.

0086 18637192252

[email protected]

0086 18637192252

[email protected]

0086 18637192252

Main features:
1.Stable performance and high screening efficiency The circular vibrating screen follows the structural design of the classic screening equipment, and its performance is fully guaranteed
2.A variety of screens to choose from To meet the requirements of various classification operations after coarse crushing and medium crushing in the crushing process, we have configured a variety of screens for the circular vibrating screen. So that we can meet different production needs through simple screen replacement operations.

Technical parameter:

Model	Screen size (mm)	No. of Layer	Screen mesh (mm)	Max. feed size(mm)	Handling capacity (t/h)	Motor power (Kw)	Vibrating frequency (r/min)	Double swing(mm)
2YZS1237	3700×1200	2	3-100	400	10-80	11	750-950	5-9
3YZS1237	3700×1200	3	3-100	400	10-80	11	750-950	5-9
2YZS1548	4800×1500	2	3-100	400	30-200	15	750-950	5-9
3YZS1548	4800×1500	3	3-100	400	30-200	15	750-950	5-9
2YZS1848	4800×1800	2	3-100	400	50-250	18.5	750-950	5-9
3YZS1848	4800×1800	3	3-100	400	50-250	18.5	750-950	5-9
4YZS1848	4800×1800	4	3-100	400	50-250	18.5	750-950	5-9
2YZS1860	6000×1800	2	3-100	400	65-586	22	750-950	5-9
3YZS1860	6000×1800	3	3-100	400	65-586	22	750-950	5-9
4YZS1860	6000×1800	4	3-100	400	65-586	22	750-950	5-9
2YZS2160	6000×2100	2	3-100	400	81-720	30	700-900	5-9
3YZS2160	6000×2100	3	3-100	400	81-720	30	700-900	5-9
4YZS2160	6000×2100	4	3-100	400	81-720	30	700-900	5-9
2YZS2460	6000×2400	2	3-150	400	100-500	30	700-900	5-9

Notice: As our Circular Vibrating Screen keeps improving, Any change of Screening machine (YZS Vibrating Screen)'s technical data shall not be advised additionally.

The ZSW Vibrating Screen (Vibrating machine) is of many layers and high efficiency. The vibratory screen adopts the barrel type of eccentric shaft vibration exciter and eccentric block to adjust the swing. The screen is of the flowing characteristics, the screening line is long and specification of materials screened is various, and it is also of reliable structure, strong exciting force, high screening efficiency, low vibrating noise, long durability, convenient maintenance, safe operation, etc, and the vibratory screen is widely used for screening in wide range including mines, building material, transportation, energy sources, chemical industry, etc. Application of Toper high quality parts of vibrating screen/ZSW vibrating screen sieve for mineral equipment: It is commonly used in industries like mine, coal, smelt, construction, refractory material, light industry and chemical industry,sand etc.

Working Principle
The round vibrating screen machine produced by the ball mill mainly consists of a screen box, a screen, a vibrator, a vibration absorber spring device, a chassis and so on. The vibrator is installed on the side plate of the screen box, and the motor rotates through the triangle belt to produce the centrifugal inertial force and force the vibration of the screen box. The side plate of the screen machine is made of high quality steel plate, and the side plate is connected with the beam and the base of the exciter with high strength bolts or rivets of ring groove. The vibrator is mounted on the side plate of the screen box and rotated by the motor through the coupling to produce centrifugal inertia force, forcing the screen to vibrate.

Our Services:
- 24 Hours Online Service.
- Inquiry will be replied within 2 hours.
- All-the-way tracking service offered from placing order to delivery.
- Professional guide installation.
- One year warranty and all-round after-sales service.
- Customized design and flow chart.
- Independent R&D team and strict & scientific management system.
