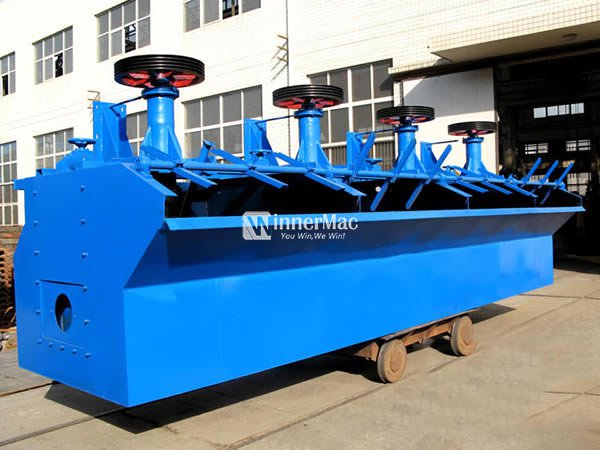

flotation machine

flotation machine

Flotation machine is the equipment to complete the flotation process, which is also called flotation cell. It is widely used for the rough, fine and reverse flotation operations of copper, lead, zinc, nickel, molybdenum and other non-ferrous metal, ferrous metal and nonmetal minerals. The types of flotation machine mainly include mechanical agitation flotation machine and froth agitation flotation machine.

We're here to help:

Easy ways to get the answers you need.

0086 18637192252
0086 18637192252
  • flotation machine
  • flotation machine
  • flotation machine
  • flotation machine
Flotation machines main features
1. High inhalation, low power consumption.
2. Each chute can inhale gas, sink magma, separate.
3. Without need of horizontal accessory equipment, it is easy to change the flow chart.
4. The cycling way of magma is very reasonable, it can reduce the impurities to a great extent.
5. Automatic equipment on the magma surface, it is easy to adjust.
6.Special designed impeller can produce upper and lower circulation of mineral slurry respectively.


Froth flotation cell Main Features:
1.1 Bilateral scraper for collecting concentrates.
1.2 The upper pulley of spindle is connected with taper sleeve for easy removal.
1.3 Use the biconical valve to adjust in the chamber, without flashboard. Use double thread screw regulating stem and motor-driven lifting device.
1.4 Steel plate thickness of the tank: 10mm. Lining of the tank bottom use wear resistant steel plate.
1.5 Discharge valve of the tank use cone valve
1.6 Tank combination depends on the buyer’s process flow diagram.

Technical Parameters of SF Model Flotation Machine

model

SF0.37

SF0.7

SF1.2

SF2.8

SF4

tank volume(m3)

0.37

0.7

1.2

2.8

4

impeller diameter(mm)

300

350

450

550

650

capacitym3/min

0.2-0.4

0.3-0.9

0.6-1.2

1.5-3.5

0.5-4

Impeller Rotate Speed
(m3/min)

352

400

312

268

238

motor

model

Y90L-4

Y100L2-4

Y132M2-6

Y160L-6

Y180L-6

Y90S-4

Y90S-4

Y90S-4

Y90S-4

Y90L-4

powerkw

1.5

3

5.5

11

15

1.1

1.1

1.1

1.1

1.5

Overall Dimensionmm

700×700×750

900×820×950

1100×1100×1100

1700×1600×1150

1850×2050×1200

unit weightkg

468

600

1373

2338

2660







Technical Parameters of XJK Series Flotation Machinery

model

XJK-0.35

(3A)

XJK-0.62

(4A)

XJK-1.1

(5A)

XJK-2.8

(6A)

XJK-5.8(7A)

effective volumem3

0.35

0.62

1.1

2.8

5.8

capacitym3/min

0.180.4

0.30.9

0.61.6

1.53.5

37

rotate speedr/min

470

400

330

280

240

Impeller Diameter (mm)

300

350

500

600

750







motor

model

rotor

Y90L-4

Y100L2-4

Y132M2-6

Y160L-6

Y200L2-6(Y225M-6)

scraper

Y90S-4

Y90S-4

Y90S-4

Y90S-4

Y90L-4

powerkw

Impeller Motor

1.5

3

5.5

11

22(30)

scraper motor

1.1

1.1

1.1

1.1

1.5

weight:(t/single tank

0.43

0.86

1.38

2.33

3.533



flotation machines application Flotation machine can be used for separating copper, lead-zinc ore, molybdenum ore, graphite ore, fluorite ore, phosphate, selected gold, silver, iron, rare earth ore, talc and so on. It is widely used in the separation and recovery for fine minerals of ferrous metal, precious metal, nonferrous metal, non-metallic minerals, rare metal, non-metal, etc.

Flotation cells is mainly composed of pulp chute, mixing device, air charging system, mineralized bubble discharging device and electric motor. The flotation cell is driven by a motor triangular substituting transmission when impeller rotates to form the centrifugal formation and produce the negative pressure, on the one hand, sucting sufficient air and mixed with the slurry, on the other hand, stirring the slurry mixed with the drug to fine the bubble to make a certain mineral bond on the bubble. Adjust the height of the disc to control the liquid surface and the useful bubble will be scraped out.


Our Services:
- 24 Hours Online Service.
- Inquiry will be replied within 2 hours.
- All-the-way tracking service offered from placing order to delivery.
- Professional guide installation.
- One year warranty and all-round after-sales service.
- Customized design and flow chart.
- Independent R&D team and strict & scientific management system.
