Hammer Mill

Hammer Mill is used for grinding raw materials by large and medium, livestock and aqua feed mills.
Hammer Mill can also be used for grass and pharmacy fine grinding. The granular raw materials, such as corn, sorghum, wheat, beans, etc. can be grinded.
Hammer Mill is derived from tear circle type hammer mill and efficiency can be improved by 45%-90% comparing to universal hammer mill.
Hammer Mill can produce qualified aqua feed under full load with φ0.8, φ1.0 screen and reduce jam significantly.

We're here to help:

Easy ways to get the answers you need.

0086 18637192252
0086 18637192252
  • Hammer MilHammer Mill,Wheat Milling Machine,Cereal Grain Hammer Mill
  • Hammer MilHammer Mill,Wheat Milling Machine,Cereal Grain Hammer Mill
  • Hammer MilHammer Mill,Wheat Milling Machine,Cereal Grain Hammer Mill
  • Hammer MilHammer Mill,Wheat Milling Machine,Cereal Grain Hammer Mill
Features: Water drop structure, with elegant structure and high grinding efficiency.

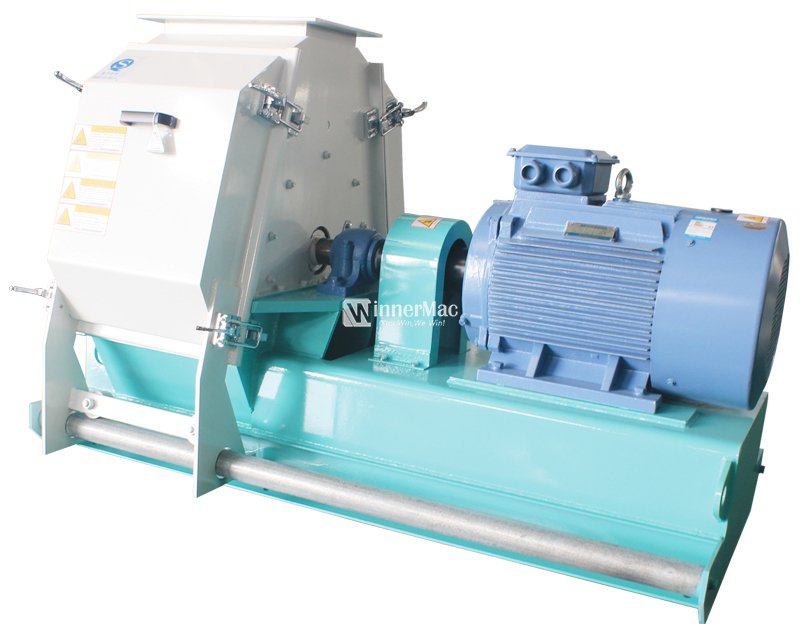

Directly connected motor, with high driving efficiency and easy maintenance.
Maintenance gate is installed by rail structure, which is of simple and convenient operation.
Grinding chamber seperation device optional, with high grinding efficiency.
U-shape grinding groove at the bottom of grinding chamber, with improvement of grinding efficiency of 50%-80%. Dead Knife optional that can improve the grinding efficiency. Rotor is undertaken dynamic balance test, which can ensure the stable operation and long service time.
Rotor rotatng in closewise and anti-closewise direction can prolong the service life og hammers.

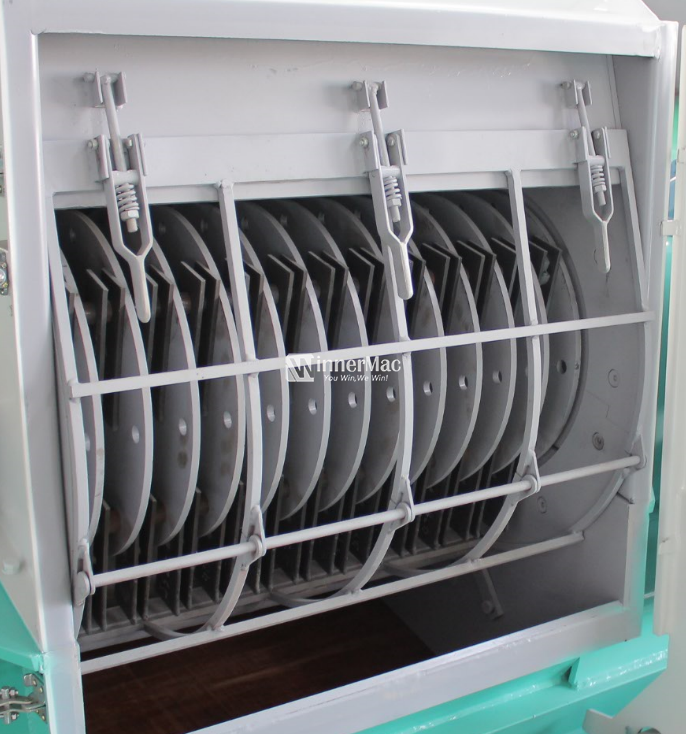

Screen fix mechianism is equipped with pressing handle, which makes more convenient of replacing of screen.
Diameter of screen can be determined according to the technological design.
Equipped with inspection and emergent stop device to protect the local worker from any injuries.

Advantages: It is simple structure, safe, dependable, easily mounting and convenient operation, low vibration, high output;
It is widely used for grinding granular materials, such as corn, sorghum, wheat, soybean, etc; Steel plate welded structure Motor and rotor are mounted on same base plate;
Pin coupling direct connection driving;
Rotor passes accurate dynamic balancing test; Safe operation door to ensure it is locked when operation;
The inlet is on top of machine for easy operation

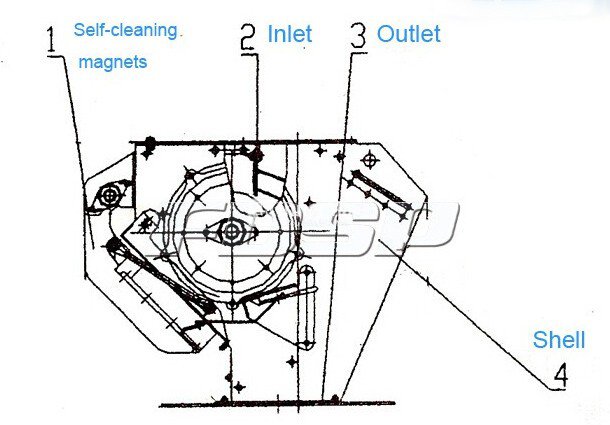

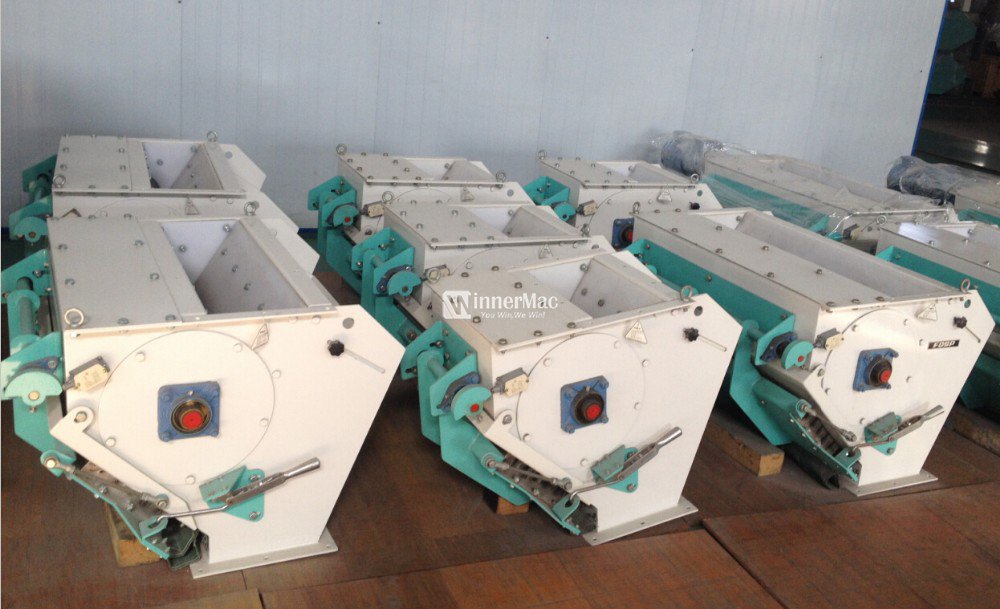

-Impeller Feeder
SWLY series impeller feeder is composed of intercross impellers.It can evenly feed. It is with self-clean magnetic separator,uniform distribution,iron-removal. Axial direction of hammer mill is uniform to feed which can reduce abrasion of hammers and vibration, enhance the service life. It is to be intact aspiration adjusting device combined with hammer mill. RPM can be adjusted by FC Inverter easily. It can be fulfilled automatic control with control of current of main motor.



Item

Model

Power(kw)

Capacity(t/h)

Hammer  Mill

SFSP668-I

30/37

1-2

SFSP668-II

45/55

2-3

SFSP668-III

55/75

3-4

SFSP668-IV

90/110

4-6

SFSP668-V

132/160

6-10

Hammer Mill is used for grinding raw materials by large and medium, livestock and aqua feed mills.
Hammer Mill can also be used for grass and pharmacy fine grinding. The granular raw materials, such as corn, sorghum, wheat, beans, etc. can be grinded.
Hammer Mill is derived from tear circle type hammer mill and efficiency can be improved by 45%-90% comparing to universal hammer mill.
Hammer Mill can produce qualified aqua feed under full load with φ0.8, φ1.0 screen and reduce jam significantly.
Both coarse and fine grinding can be realized without changing screens.
The right aspiration can make materials go through screen quickly, reduce temperature of grinding chamber and increase output effectively.
› Pre-sale Service: Choice of model Designing and manufacturing product according to customer's special requirement Company will arrange engineer to customer's site,designing site and discussing project
› Content on service: Product inspection Help customer to formulate the construction plan
› After-sale Service: Assign special after sale service team to site guiding customer to install and adjust machines Training operator on site
