dewatering cyclone system,cyclone,hydro cyclone

dewatering cyclone system,cyclone,hy

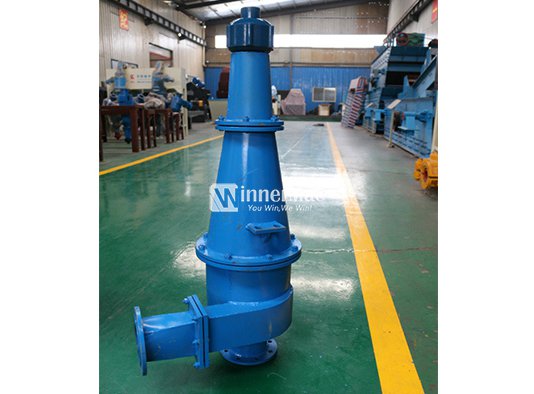

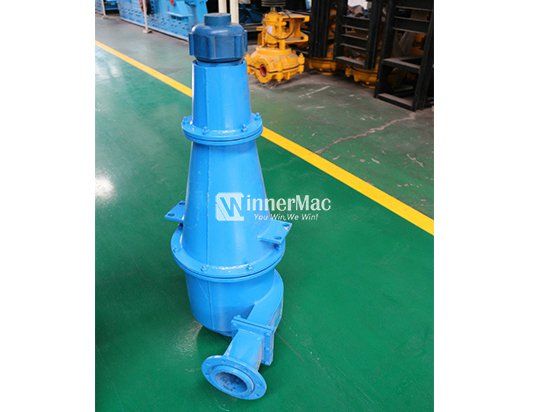

dewatering cyclone system,cyclone,hydro cyclone is use with fine sand recycle system , which designed on the base of absorbing world advanced technology and combining with the domestic applications of  ball mill sand making industrial. It is widely used in rock crushing and washing plant, crushed sand or natural sand washing plant, mineral tailing processing site, etc.

We're here to help:

Easy ways to get the answers you need.

0086 18637192252
0086 18637192252
  • dewatering cyclone system,cyclone,hydro cyclone
  • dewatering cyclone system,cyclone,hydro cyclone
  • dewatering cyclone system,cyclone,hydro cyclone
  • dewatering cyclone system,cyclone,hydro cyclone
Features 1. It is widely used in quarry, natural sand recycling, crushing plant, mining; 2. It is followed sand washing machine, screw sand washer or sand dewatering screen; 3. 0.16-3mm fine sand can be recycled; 4. Recycling rate reaches above 95%; 5. Moisture content within 15%.

Model

Slurry pump

Cyclone

(mm)

Dewatering screen

productive

(m3/h)

Weight

(T)

material

Power

(kw)

material

Power

(kw)

250

Cr26

7.5-11

250

PU

0.55x2

30-80

2.05

300

Cr26

11-15

300

PU

0.75x2

40-100

2.2

350

Cr26

15-18.5

350

PU

0.75x2

70-130

2.56

550

Cr26

18.5-22

250x2

PU

1.1x2

100-220

3.25

650

Cr26

18.5-22

300x2

PU

1.1x2

120-272

3.95

750

Cr26

37-55

350x2

PU

1.5x2

180-350

4.9

900

Cr26

55-65

300x3

PU

2.2x2

250-500

5.65

1200

Cr26

60-74

300x4

PU

2.2x2

500-650

6.75

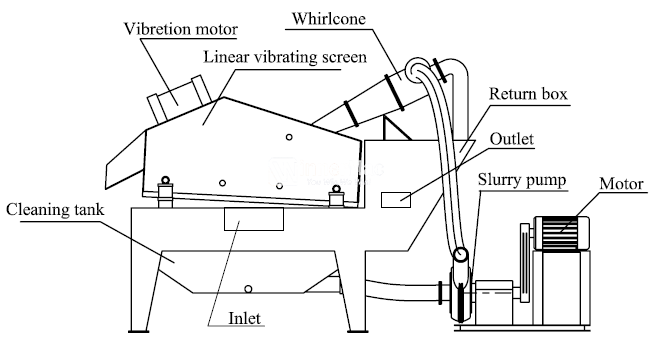

Through rubber pipes sand and water mixture is extracted from cleaning tank into slurry pump. The fine sand is collected by the centrifugal force of the cyclone, then fed to the polyurethane screen from the apex spray. The 0.16-3mm fine sand and water are efficiently separated through the vibration screen. The waste water will flow back to the return box, through weld chute or pipes flowing to a settling pond.
› Pre-sale Service: Choice of model Designing and manufacturing product according to customer's special requirement Company will arrange engineer to customer's site,designing site and discussing project › Content on service: Product inspection Help customer to formulate the construction plan › After-sale Service: Assign special after sale service team to site guiding customer to install and adjust machines Training operator on site
